18 GHz Power Divider
-
Place of OriginCHINA
-
MerknaamZR Hi-tech
-
Model NumberLT-PD-4S-010180
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsD/A,D/P,T/T

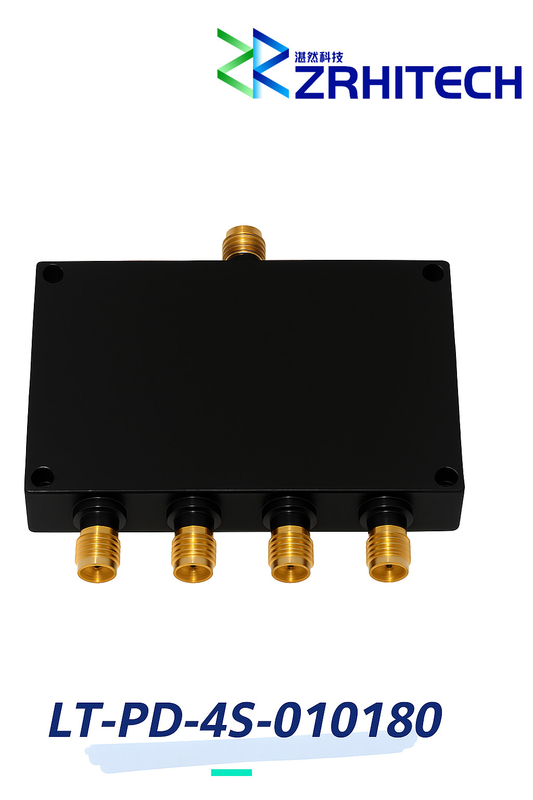

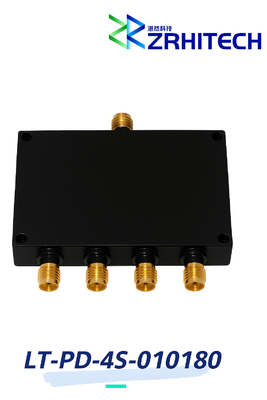

1.0 to 18 GHz 20 Watt LT-PD Series 4-Way Power Divider
1.0 to 18 GHz 20 Watt LT-PD Series 4-Way Power Divider
Product Overview
The LT-PD-4S-010180 is a high-performance 4-way power divider designed for applications requiring broadband frequency coverage from 1.0 to 18 GHz with a maximum power handling of 20 Watts.
Key Features
- 4-Way power division with stripline design
- Broad frequency range: 1.0 to 18 GHz
- High power handling: 20 Watts (CW)
- Low insertion loss: < 2.5 dB
- Excellent isolation: > 17 dB
- Wide operating temperature: -55℃ to +85℃
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-4S-010180 | |
| Frequency Range | 1.0 to 18 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.5:1 Max. | |
| Output VSWR | 1.5:1 Max. | |
| Insertion Loss | 2.5 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 17 dB Min. | |
| Amplitude Balance | 0.8 dB Max. | |
| Phase Balance | 10 Degrees Max. | |
| Input Power | 20 kW | |
| Connectors | SMA-Female | |
| Dimensions | 110.5 × 73.7 × 12.7 mm |
Note: Custom specifications available upon request.
Mechanical Outline
