8 Way Power Divider
-
Place of OriginCHINA
-
MerknaamZR Hi-tech
-
Model NumberLT-PD-8S-060400
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsD/A,D/P,T/T

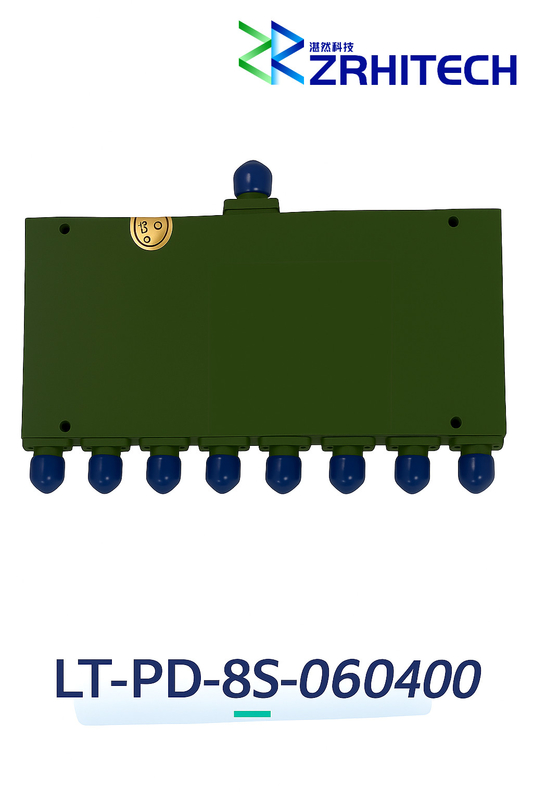

6 to 40 GHz 20 Watt LT-PD Series 8-Way Power Divider
6 to 40 GHz 20 Watt LT-PD Series 8-Way Power Divider
Quick Detail:
- 8-Way Power Divider
- Stripline Design
- -55℃ to +85℃ operating temperature
- 6 to 40 GHz Frequency Range
- Max Power 20 Watt
- Insertion Loss < 3.6 dB
- Isolation > 14 dB
- CE, RoHS, REACH compliant
- 1 Year Warranty
Description:
The LT-PD-8S-060400 from ZR is an 8-way power divider that operates from 6 to 40 GHz and can handle up to 20 Watt (CW) with 3.6 dB max insertion loss and 14 dB min isolation. The package interface uses 2.92mm-Female connectors and is REACH and RoHS compliant.
Specifications:
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-8S-060400 | |
| Frequency Range | 6 to 40 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.7:1 Max. | |
| Output VSWR | 1.7:1 Max. | |
| Insertion Loss | 3.6 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 14 dB Min. | |
| Amplitude Balance | 1.6 dB Max. | |
| Phase Balance | 16 Degrees Max. | |
| Input Power | 20 kW | |
| Connectors | 2.92mm-Female | |
| Dimension | 49x104x12.7 mm |
Note: for custom specs, please contact us directly.
Outline Drawing:
