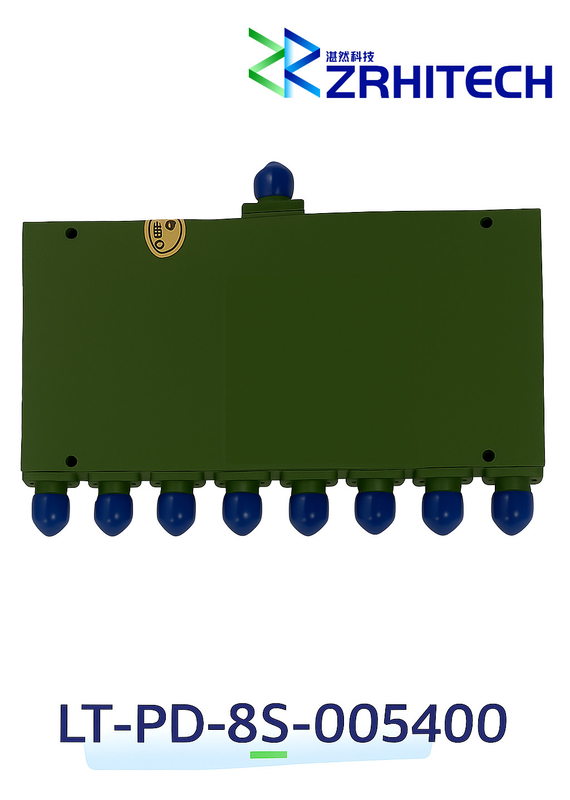

0.5 to 40 GHz 20 Watt LT-PD Series 8-Way Power Divider

0.5 to 40 GHz 20 Watt LT-PD Series 8-Way Power Divider

Producten - Vermogenverdeler
  • Place of Origin
    CHINA
  • Merknaam
    ZR Hi-tech
  • Model Number
    LT-PD-8S-005400
  • Document
    Productenbrochure PDF
  • Minimum Order Quantity
    1
  • Packaging Details
    carton packing
  • Delivery Time
    4 weeks
  • Payment Terms
    D/A,D/P,T/T

0.5 to 40 GHz 20 Watt LT-PD Series 8-Way Power Divider

  • 0.5 to 40 GHz 20 Watt LT-PD Series 8-Way Power Divider
Prijs opvragen Contact nu
0.5 to 40 GHz 20 Watt LT-PD Series 8-Way Power Divider
Quick Detail:
  • 8-Way Power Divider
  • Stripline Design
  • -55℃ to +85℃ operating temperature
  • 0.5 to 40 GHz Frequency Range
  • Max Power 20 Watt
  • Insertion Loss < 11 dB
  • Isolation > 15 dB
  • CE, RoHS, REACH compliant
  • 1 Year Warranty
Description:

The LT-PD-8S-005400 from ZR is an 8-way power divider that operates from 0.5 to 40 GHz and can handle up to 20 Watt (CW) with 11 dB max insertion loss and 15 dB min isolation. The package interface uses 2.92mm-Female connectors and is REACH and RoHS compliant.

Specifications:
Items Specification Conditions
Part Number LT-PD-8S-005400
Frequency Range 0.5 to 40 GHz
Impedance 50 Ohms
Input VSWR 1.8:1 Max.
Output VSWR 1.8:1 Max.
Insertion Loss 11 dB Max. Excluding Nominal Splitter Loss 3.0dB
Isolation 15 dB Min.
Amplitude Balance 1.6 dB Max.
Phase Balance 24 Degrees Max.
Input Power 20 kW
Connectors 2.92mm-Female
Dimension 161.9x147.3x12.7 mm
Note: for custom specs, please contact us directly.
Outline Drawing:
0.5 to 40 GHz 20 Watt LT-PD Series 8-Way Power Divider 0
